--In addition to reading the MTSC booklet, here’s the accompanying video:
https://mymopar.com/mtsc-1958-volume-11-5-brake-service/
Ron
From: chrysler-300-club-international@xxxxxxxxxxxxxxxx On Behalf Of Henry Schleimer
Sent: Tuesday, July 09, 2024 12:13 PM
To: 'Ron Waters' <ronbo97@xxxxxxxxxxx>; 'Ray Melton' <rfmelton@xxxxxxx>; '300 Club' <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
Subject: RE: {Chrysler 300} HELP! Need front brake backing plate for 1957 300C
Like Ron says, if the “return spring link” is not broken, it may just be out of place. Please refer to pages 16 to 19 of the 1958 Brake Service book on the club website https://www.chrysler300club.com/tech/125.pdf It has a good picture on p18 as well.
Make sure the link is properly seated on the pin it pivots around when assembling the brakes. Otherwise the coil springs won’t provide even tension. Worth a close inspection first. I’m pretty sure I looked at that when I put mine together because I was choosing the best ones out of some spares.
Otherwise there may be some other advice from the book to assist in diagnosing the problem. Hope this helps.
Henry
From: chrysler-300-club-international@xxxxxxxxxxxxxxxx [mailto:chrysler-300-club-international@xxxxxxxxxxxxxxxx] On Behalf Of Ron Waters
Sent: Tuesday, 9 July 2024 11:28 PM
To: 'Ray Melton'; '300 Club'
Subject: RE: {Chrysler 300} HELP! Need front brake backing plate for 1957 300C
Ray –
The parts book will supply you with illustrations and proper terminology for the part that you need. If you don’t have one, it’s best to get the 1955 thru 58 book, published May 1964. Blue and white cover. You can find them on ebay or you can download it for free from MyMopar.
Have you already pulled the center support piece and confirmed that your square spring is broken ? It’s pretty difficult to snap that guy. What I’ve seen happen is that the square spring dislodges from the eccentric adjuster so that it can no longer hold the brake spring correctly. If you actually have a broken spring, then a replacement should come from a 57-8, or early 59 Desoto or Chrysler with 12” brakes. John Fowlie at Big M Auto can help you out with that. Be sure you verify that the hex head adjusters work and replace small circular dust shields by adjusters.

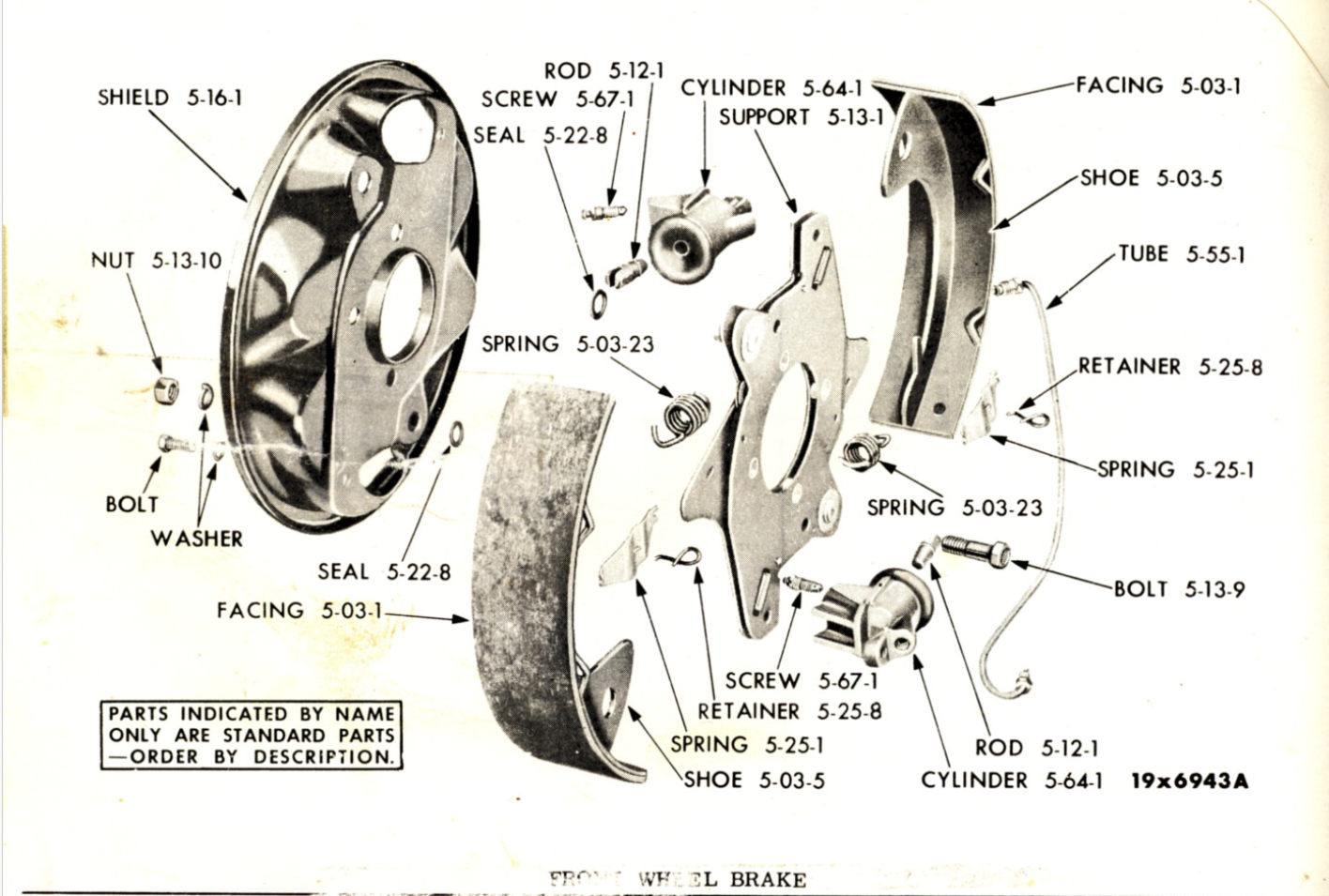

From the parts book, here is an illustration of the front brakes. The numbers associated with the parts are reference numbers, not part numbers.
Ron
From: chrysler-300-club-international@xxxxxxxxxxxxxxxx On Behalf Of Ray Melton
Sent: Tuesday, July 09, 2024 8:02 AM
To: '300 Club' <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
Subject: {Chrysler 300} HELP! Need front brake backing plate for 1957 300C
Hello All -
Following an extensive restoration of virtually every system on my late father's 1957 Chrysler 300C convertible, I have endured five maddening years of the right front brake dragging, pulling, and sometimes even locking up hard enough to stop the wheel from turning! I've replaced wheel cylinders, shoes and return springs to no avail. Last month the RF brake locked up hard enough to skid the tire at 5 mph in a parking lot, and I only could get it unlocked by backing up a few feet, but then it would either drag hard or lock up again as soon as I went forward. I was lucky to nurse it a few miles back home, where I had to again skid the jammed RF wheel 20 feet into the garage. I won't dare drive it again until I get it fixed for good! Everything looks OK when I pull off the drum (although the lining on the trailing shoe is worn down to 1/8" after less than 1000 miles on the restoration - that's how bad the RF brake has been dragging all this time! With nothing obviously wrong, I just didn't know where to go from here.
Just today I came across a very old article from George Riehl that described my symptoms exactly and diagnosed that one of the long, square-section springs within the backing plate had broken, and the only fix is to get another complete centerplane backing plate - suggesting that one from a 1957 New Yorker or perhaps even a '57 Dodge or DeSoto would work (must specify for 12" brakes). This is the link to that article: FRONT BRAKE BACKING PLATES with 12" brakes (ch300imp.com) That article includes photos of the backing plate I need.
My problem is that I don't know exactly the terminology for what I need and don't know the best places to start looking for such an old part. I can provide a photo of the backing plate I (think) I need, but can't post it with this message on the listserver.
Can anyone please help me clarify exactly what to ask for and perhaps even more importantly, who/where might be the best place to start looking?
Ray Melton Las Cruces, NM 1957 Chrysler 300C cvt s/n 3N572517 (April 1957) (575)642-3151
--
