Re: {Chrysler 300} Non Ram to Ram conversion: 300K?

["'Keith Langendorfer' via Chrysler 300 Club International" <chrysler-300-club-international@xxxxxxxxxxxxxxxx>]

Thanks, Danny - I thought about Jeff maybe having some of the linkage but great to hear that!

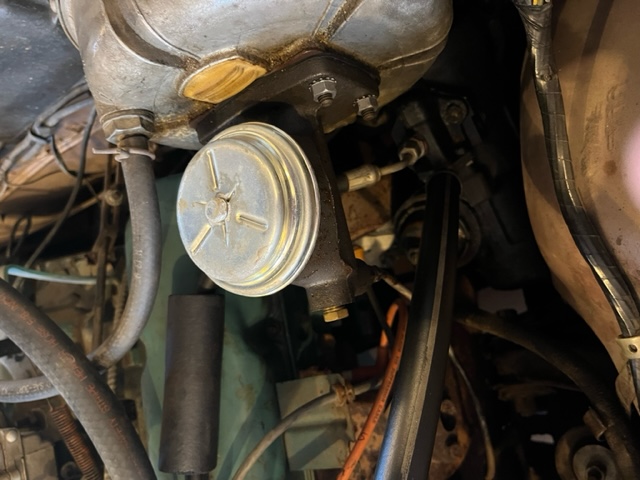

Our K still has the firewall mounted Bendix booster and a new single reservoir master and I’ve got a 90 degree fluid fitting installed on the nose. The Bendix looks narrower than the Midland Ross unit and Rich Barber sent me a few pics of a K that he saw at a show many years ago that had the same setup with short rams installed with a whisker of clearance on the drivers side.
Keith

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/9CF03C12-32A2-480A-AFDF-899BC9D294E6%40yahoo.com.

> On May 1, 2023, at 12:24 PM, Dan Plotkin <dplotkin@xxxxxxxxxxxxxxxxxxx> wrote:
> I used JC Auto to source all the firewall mounted hardware I needed to build a Ram Inducted 1961 Plymouth Savoy. He had everything and then some. Call Jeff Carter.
> A single jar master that bolts to the firewall and not a booster can should clear the RAM.  What master are you using?
>
> -----Original Message-----
> From: 'Keith Langendorfer' via Chrysler 300 Club International [mailto:chrysler-300-club-international@xxxxxxxxxxxxxxxx]
> Sent: Monday, May 1, 2023 11:52 AM
> To: chrysler 300 club <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
> Subject: {Chrysler 300} Non Ram to Ram conversion: 300K?
>
>
>
> Hi Folks
>
> Dominic Rinaldi has finished the complete rebuild/enhancement of George Riehl’s “Killer K” 413 and it will be installed the end of this month. I have a short Ram setup to go onto the engine at the same time (cast iron J/K headers are already on the car) and I’m rolling the dice that the drivers side manifold will squeak by the nose of the existing master cylinder.
>
> Assuming it does, I wanted to know if anyone has converted a non ram car (maybe even a K) to rams and what they learned? The ram setup I have only has the linkage from the vertical bellcrank to the carbs and nothing ram-specific behind that bell crank. In looking at the ‘64 parts manual, it looks like there were a bunch of ram-specific pieces between the gas pedal and that vertical bellcrank in the middle of the rams.
>
> I think I see a way to modify the firewall mounted bellcrank to position the rod to the carbs more centrally (vs the left side bias of the single 4 barrel setup) but not sure if there’s anything else intricate that would unequivocally need to be obtained or fabricated? The one positive thing in all of this is that since the car is a 4 speed, I don’t have to worry about the Torqueflite kickdown linkage.
>
> I also do not have the centrally positioned anti-stall dash pot. I see how that works on our automatic choked F but I don’t know if this will be an issue with the manual choked 3505 AFB’s or just require extra finessing at startup? I’m guessing that ideally it should have one of these.
>
> Any input would be appreciated, both in terms of personal experience and also parts, including linkage pieces and that dashpot w/bracket (or even a part # for that piece since I can’t find it in the parts manual) that you may have to sell that will aid in the conversion.
>
> Thanks in advance,
>
> Keith
>
> PS: If I can’t all this to work, we’ll use a stock 440HP 4 barrel intake and a single 750 Carter or Edelbrock AFB. I have modified an aftermarket air cleaner base so that the smallish black factory air cleaner will fit on the bigger carb and it will all appear pretty much stock, cast iron headers notwithstanding.
>
>
>
>
>
> --
