Re: Heater Blower Knob
[Date Prev][Date Next][Thread Prev][Thread Next][Date Index][Thread Index]

Re: Heater Blower Knob



A job well done Jim!  You are thorough.
Gary P.

Sent: Thursday, May 19, 2016 9:41 PM
Subject: Re: Heater Blower Knob

Mopar Fans,

Now the rest of the story!

I finally got it out with  my plasma cutter, just kidding. It was a tussle.

I tried the pushing the button in and turning the collar but no luck. Finally after retracing my steps and I noticed with the button pushed in there was something stopping the collar from turning.

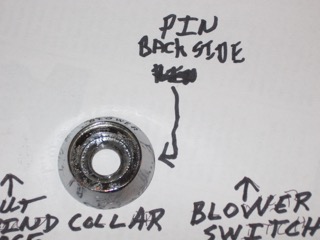

As I have the dials out of the dash I was able to reach a finger in back of where the hang up was on the collar. There was a pin on the back side of the collar protruding through the dash sheet metal. Thus the collar would not spin off the nut

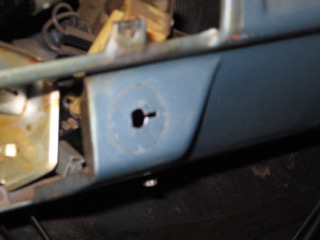

Finally I removed the Ash Tray insert and was able to get a grip on the Switch and turned it Counter Clockwise, Back Side Direction. The switch does have two flat sides  fitting a 7/16 Open end small wrench. Unscrewing it the switch became lose and tidies to finish. Bottomline is to first remove the ash tray insert, disconnect the two terminals from behind,
start turning the switch by holding the collar against the  dash panel. This will release the collar nut which resides behind the "Fan Speed Indicator". Be careful not to strip the switch threads when taking it out through the slot in the dash. It should really be screwed out of the slot.

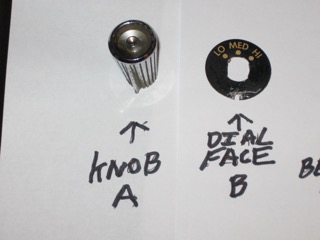

Now , the easy way if your dash is not apart.  Just peal of the "Fan Speed Indicator” off the face of the collar and there is the nut on the front side. Just remove the nut and off comes the collar. Thats all there is to it. Label, painted metal, is stuck to the collar by a bead of some sort adhesive like RV sealer?

I used a pick like the dentists use.

Check the pictures below to get a feel for whats involved.

I will probably need a new switch, another call & $$ to Joe. Better save than sorry.


Hope this is helpful.

Good Night

Jim



On May 19, 2016, at 8:36 PM, Gary Pavlovich <glpavlovich@xxxxxxx> wrote:

Gary Wilson hit it right on the head with “pushing in the knob and turning it to release.”
Gary P.

Sent: Thursday, May 19, 2016 2:33 PM
Subject: Re: Heater Blower Knob

Some of them screw off counterclockwise

Sent from my iPad

On May 19, 2016, at 1:19 PM, Gary Pavlovich <glpavlovich@xxxxxxx> wrote:

Jim,

Usually there is a “set screw” to remove the bezel/knob with a small allen wrench.
Gary P.


Sent: Thursday, May 19, 2016 10:00 AM
Subject: Heater Blower Knob

Mopar Fans ,

Here is the baffler I referred to yesterday. I am unable to get the Blower Knob on the dash off. I noticed a little peg on the inside of the collar. I tapped it after the collar would not turn. It moved the collar just a hair and then stopped. I checked the back side for a nut but found non, just the switch.  Pictures attached.

Any help would be helpful as I want to get the dash painted and start reassembling the interior.

<Heater A Knob.jpeg><Heater Blower Knob B.jpeg>

Jim

1965 Coronet 500, 440Ci
--
--
--
