Re: {Chrysler 300} 1957 wiring advise

["'MARVIN RAGUSE' via Chrysler 300 Club International" <chrysler-300-club-international@xxxxxxxxxxxxxxxx>]

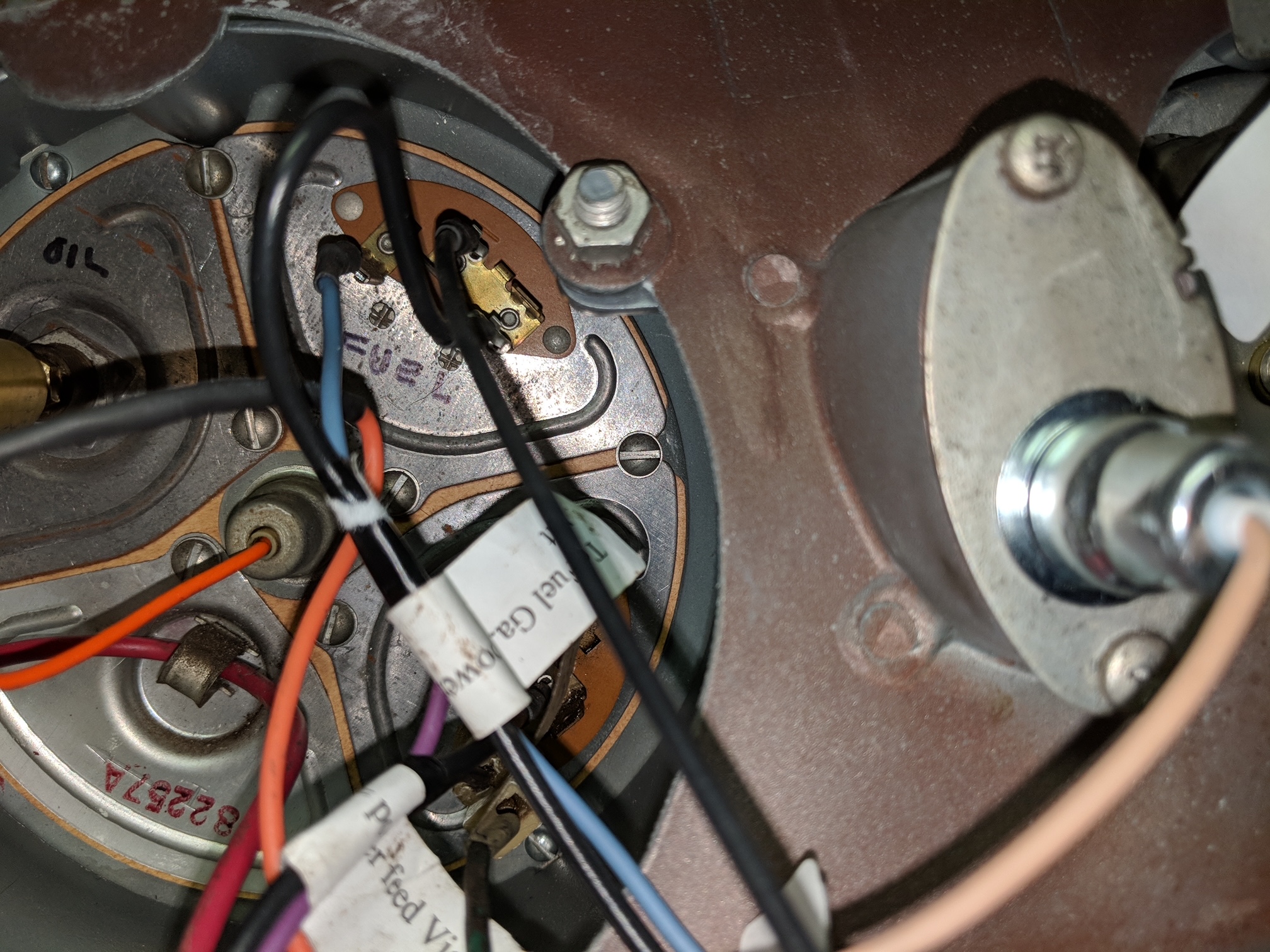

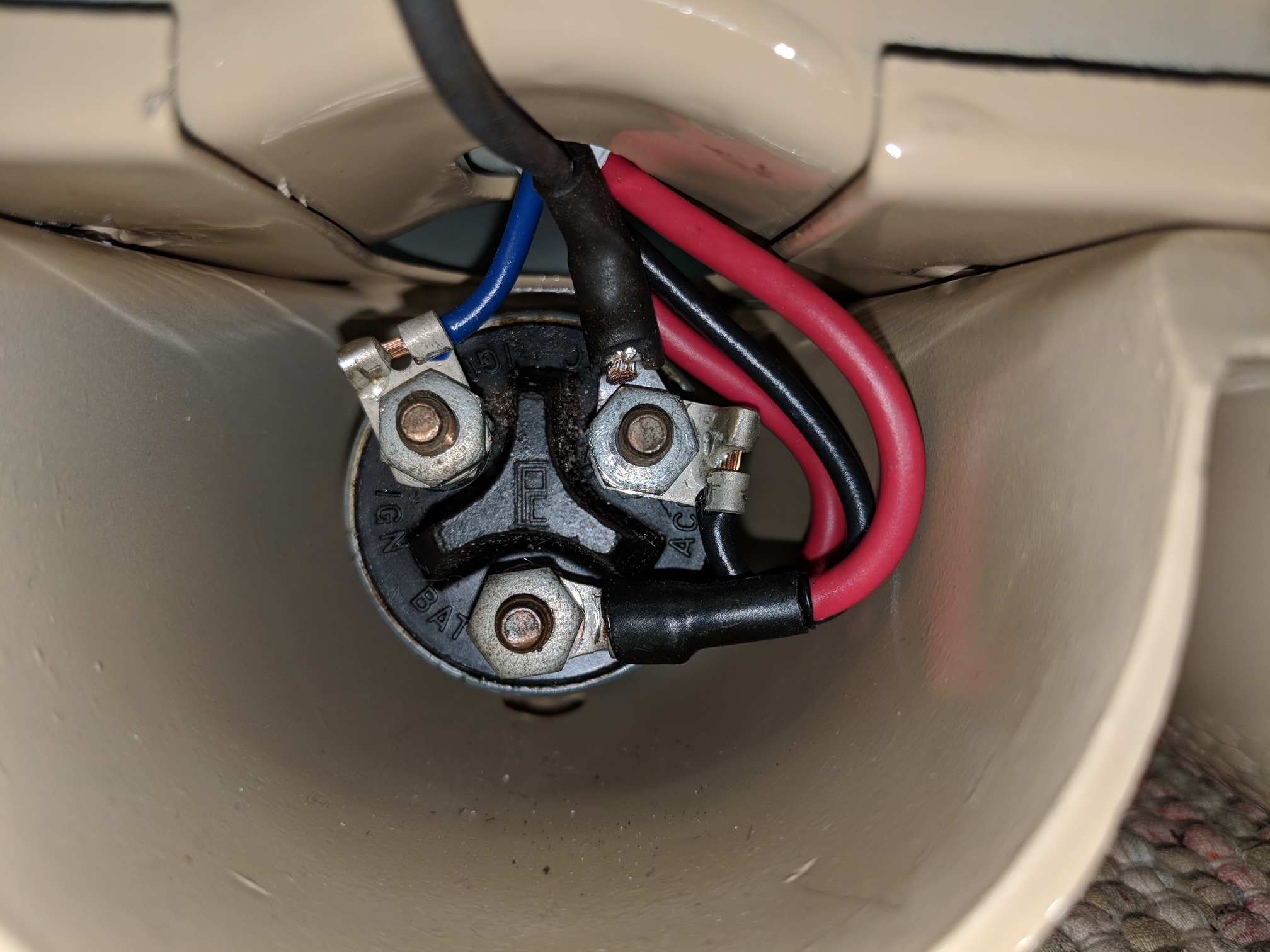

Maybe this will help.  This is my 58 D.  I only hope that I have them correct!
I also had to use my original bulb sockets because the ones Greg was using at the end would not snap into the gauges.  Once in the car a bulb replacement would be nearly impossible.

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion visit https://groups.google.com/d/msgid/chrysler-300-club-international/F703BD8D-7EB3-4B5C-A6E7-2F19C0252F71%40aol.com.

I mentioned to Greg that a little longer leads on the bulb socket wires would help later if a replacement becomes necessary.  Marv Raguse.  57C & 58 D.
Sent from my iPhone

> On Oct 10, 2025, at 6:52 AM, Bob Merritt <bob@xxxxxxxxxxxxx> wrote:
>
> Hi Andrew;
>
> The amp wire does not connect to the amp gauge. It goes through the metal loop on the back of the gauge.
>
> As I recall, the amp wire goes into the loop from the top. If you do it backwards the amp will
>
> show discharge during charge. The terminal end of the amp wire goes to the ignition switch as a feed wire.
>
> Page 44 of the 1958 service manual has the schematic. Yes, 1958 manual. The 57 manual has errors.
>
> You can get the manual at http://www.chrysler300clubinc.com/jholst/300resource/index.html
>
>
> The CB CA BAT wire might be the feed wire to the headlamp switch, I am not sure.
>
> My guess is the AUX wire goes to the accessory post on the ignition switch.
>
>
> I recently installed new wire harnesses in a C although I didn't buy Greg's -- I expect
>
> they are all pretty much the same. Pages 3, 6, and 7
>
> of http://www.simplexco.com/auto/1957/57DB/1.html
>
> should be of help. In any case, you should add fuse protection
>
> shown on page 7.
>
> Bob
>
>
>
>> On 10/10/2025 3:38 AM, Julie Whitlock wrote:
>> Hi 300 members
>>
>> Andrew from Australia,
>>
>> I  purchased a reproduction wiring loom from Greg leggatt and have contacted him and unfortunately he has passed away sad news for the 300 club I’m sure Greg and his knowledge will be missed.
>>
>> I am stuck on a couple of items any information would be greatly appreciated.
>>
>> 1           how dose the wire for the AMP gauge connect ? am I missing a screw or something else.
>>
>> 2           CA C.B. Bat ? where dose this connect
>>
>> 3           AUX black wire where to connect ?
>>
>> Also attached a picture of the restored dash at this point , finishing the rear view mirror then installing the padded overlay.
>>
>>
>>
>>
>> Regards
>>
>> Andrew Whitlock
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>
> --
