{Chrysler 300} 300C radio

[John Grady <jkg@xxxxxxxxxxxxxxxxx>]

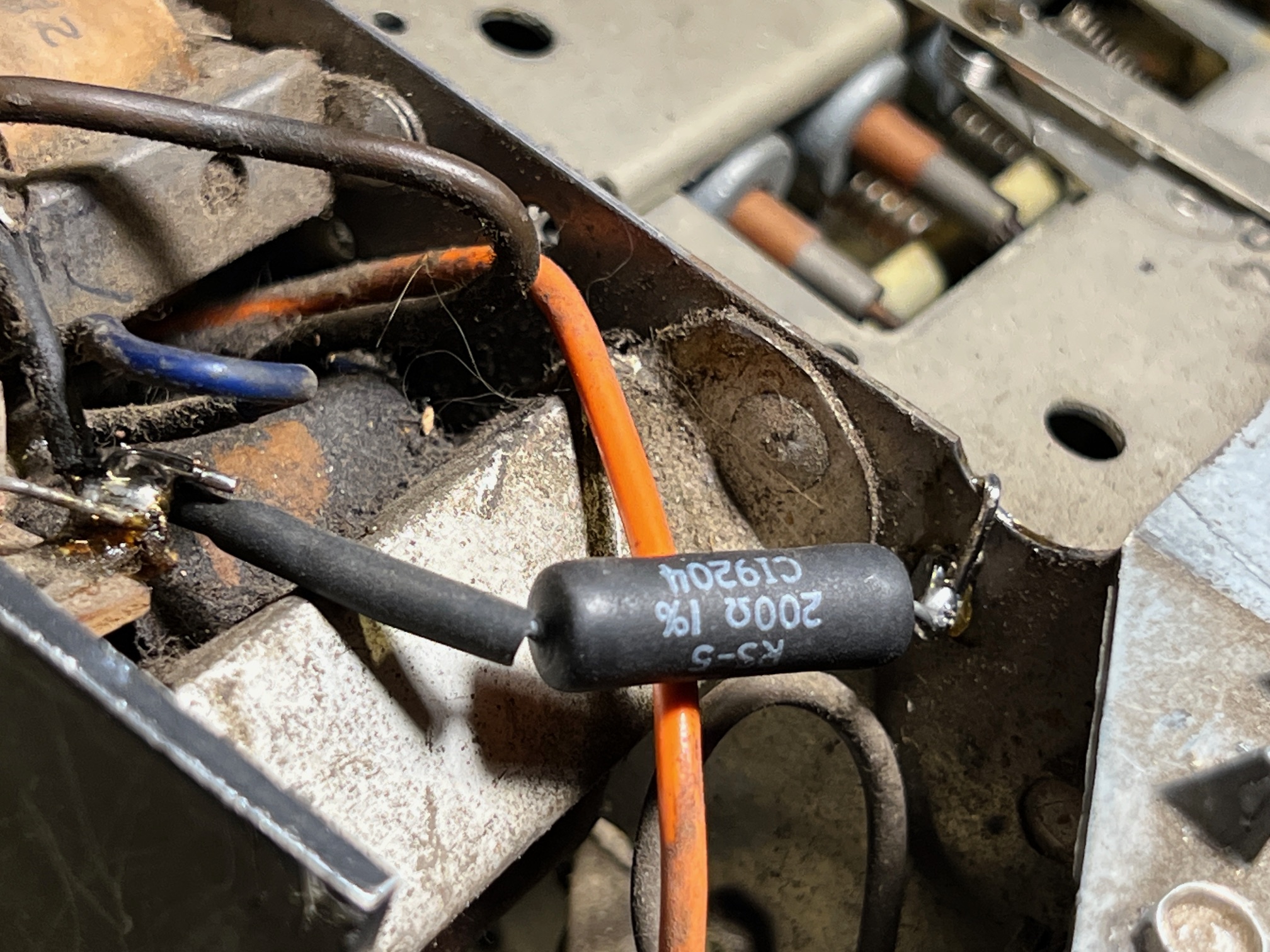

new output transistor and added resistor  200 ohm 5 watt to correct the bias .—one end is soldered  to chassis  metal not collector metal  .
E of new transistor goes to  existing 0. 27 ohm resistor , B goes to 2 nd lead on terminal strip that is not connected to the heatsink ( C is case , makes connection when you mount it  ) set bias per instruction on print

--
