Re: {Chrysler 300} 1962 Speedometer Cable



Matt,

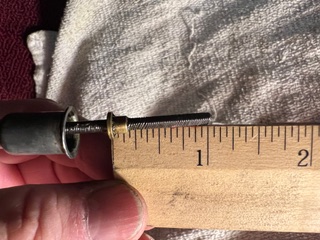

As a data point, here is the speedometer end of the cable on our H.  Currently chasing down a non functional speedometer.
It is 3/4” from cable end to narrower diameter of ferrule and 1” from cable end to larger diameter of ferrule.   This seems to match yours…?
V/r
D&K

IMG_5730

Sent from my iPhone

On Jul 29, 2024, at 12:08, 'Joe Williams' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:


Hi Matt,
       Try connecting speedo end first and see if the trans side will allow cable to connect up.
Joe

On Sunday, July 28, 2024 at 10:15:26 PM EDT, 'Matt Allyn' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:

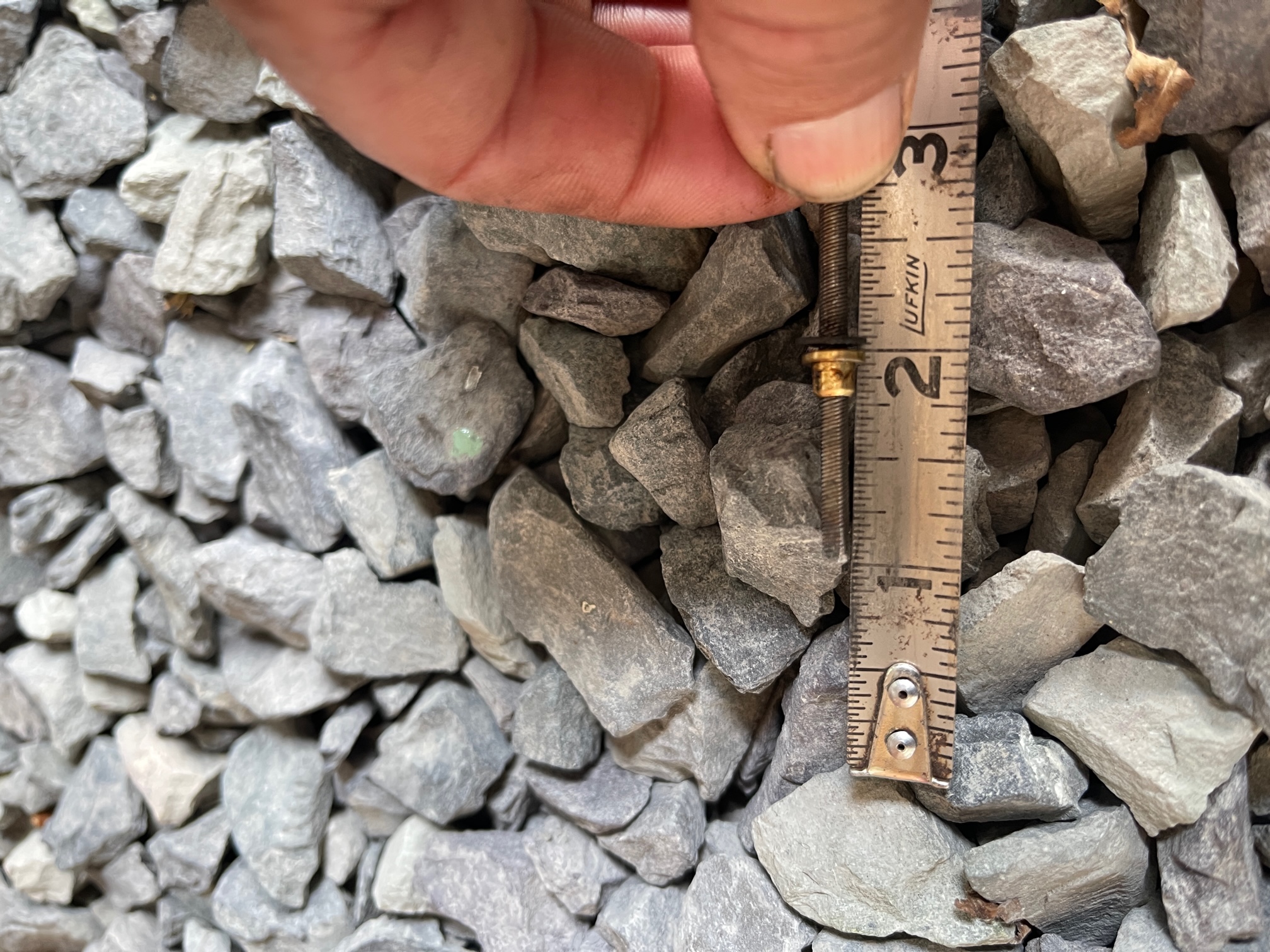

I went to install my new Speedometer Cable into the back of the Speedometer Head.
The Inner Cable will slide into the Speedometer…..

BUT….
It appears that the Inner Cable tip is TOO long in relation to where a crimped on ferrule lives.
And because of that; the Inner Cable shroud is not allowed to meet the back side of the Speedometer thread area.
And because of that; the Cable cannot be threaded onto the back of the Speedometer.
(Hope that all makes sense)

Seems I may need to have the Cable tip trimmed shorter?
OR
Maybe need to have the crimped ferrule moved forward to lessen the 1” tip length?
If this is the case; anyone know how close to the tip the ferrule should be located?
(Picture below)

Speedo Cable.jpeg

Thanks
Matt Allyn

--
