{Chrysler 300} Power Brake Booster

[William Huff <whuff@xxxxxxxxxx>]

Greetings,

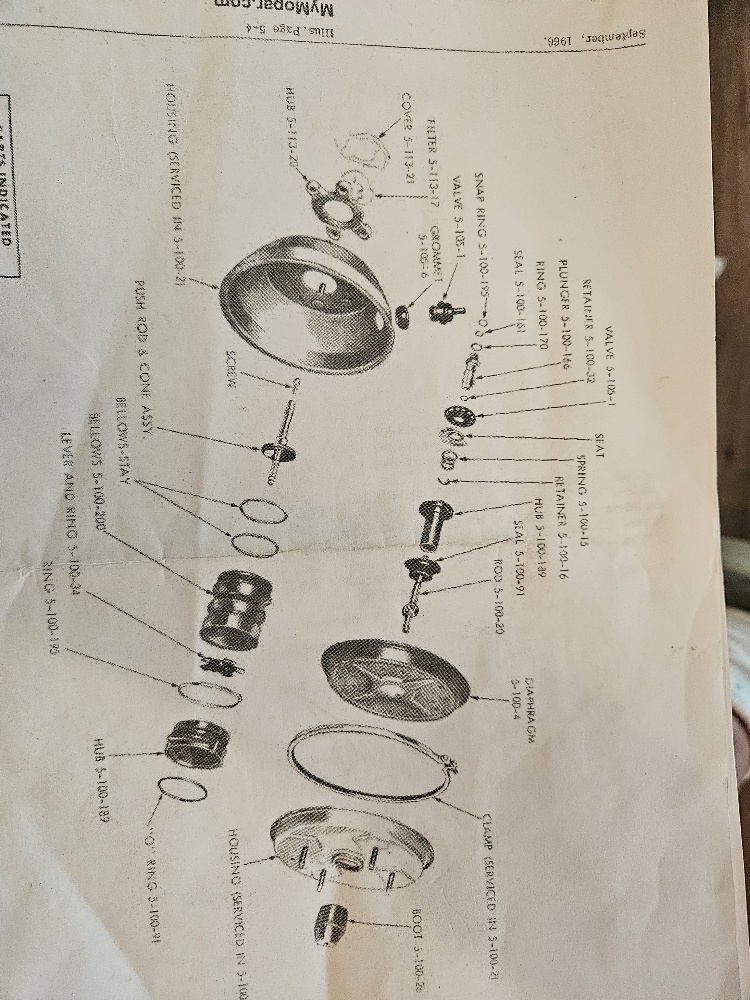

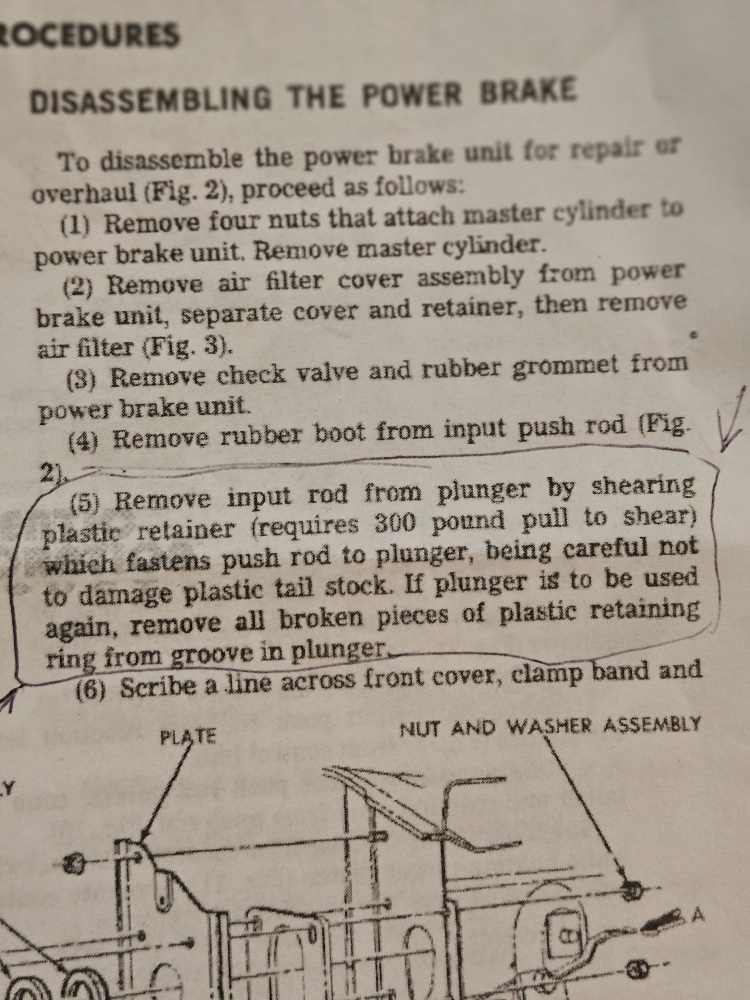

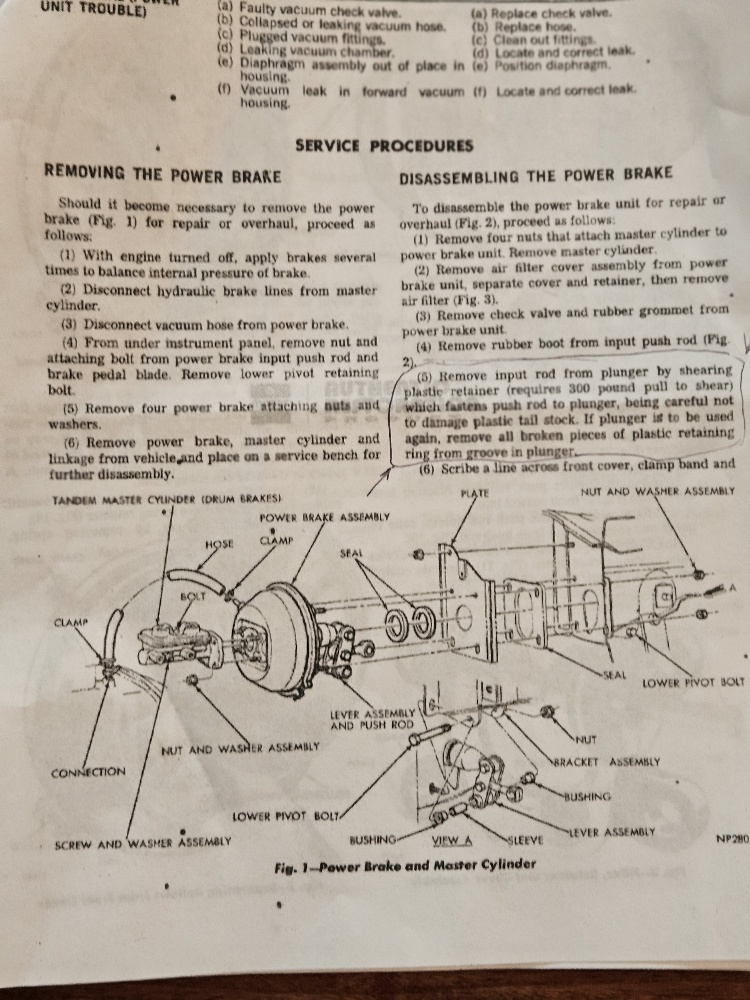

I could use some advice from teh intellegencia in thei group.  I received my booster repair kit and am starting the process  As youi can see inthe attached photos, one of the first steps is to remove the input rod from the plunger.  This takes 300 lbs. of force to break the plastic retainer. While doing this one must be careful not to damage the plastic tailstock.  My dilemma is how do I support the assembly so it is stable and can  withstand 3000 lbs. of force.  I will be using a long lever, as i don't weigh anything near that weight.  I was thinking of using a sledge hammer tied to a line that went through the eye of the rod.  Sort of a large slide hammer.

Any ideas welcome.

Bil Huff

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/5f1f809c-a690-f411-966f-d55d39ab49fe%40cfl.rr.com.

Attachment: 20230926_142957_resized.jpg
Description: JPEG image

Attachment: 20230926_162317_resized.jpg
Description: JPEG image

Attachment: 20230926_162451_resized.jpg
Description: JPEG image

Attachment: 20230926_162454_resized.jpg
Description: JPEG image

Attachment: 20230926_162457_resized.jpg
Description: JPEG image
