Re: {Chrysler 300} 64 starting problem and work around- wire damage



Thanks all!

I had forgotten there was a neutral safety switch in the circuit; that put an idea in my head.

A minute of background-
We have a small garage with a lawn mower Bay Area attached to one end, an open carport on the other end, and an open carport along the front that Kya and I built.  All of the attached areas have a gravel floor.  Recently we had to kick out a groundhog that had made a burrow in the lawn mower bay.  We have seen the groundhog hanging around the carport area (not far from Kya’s garden).

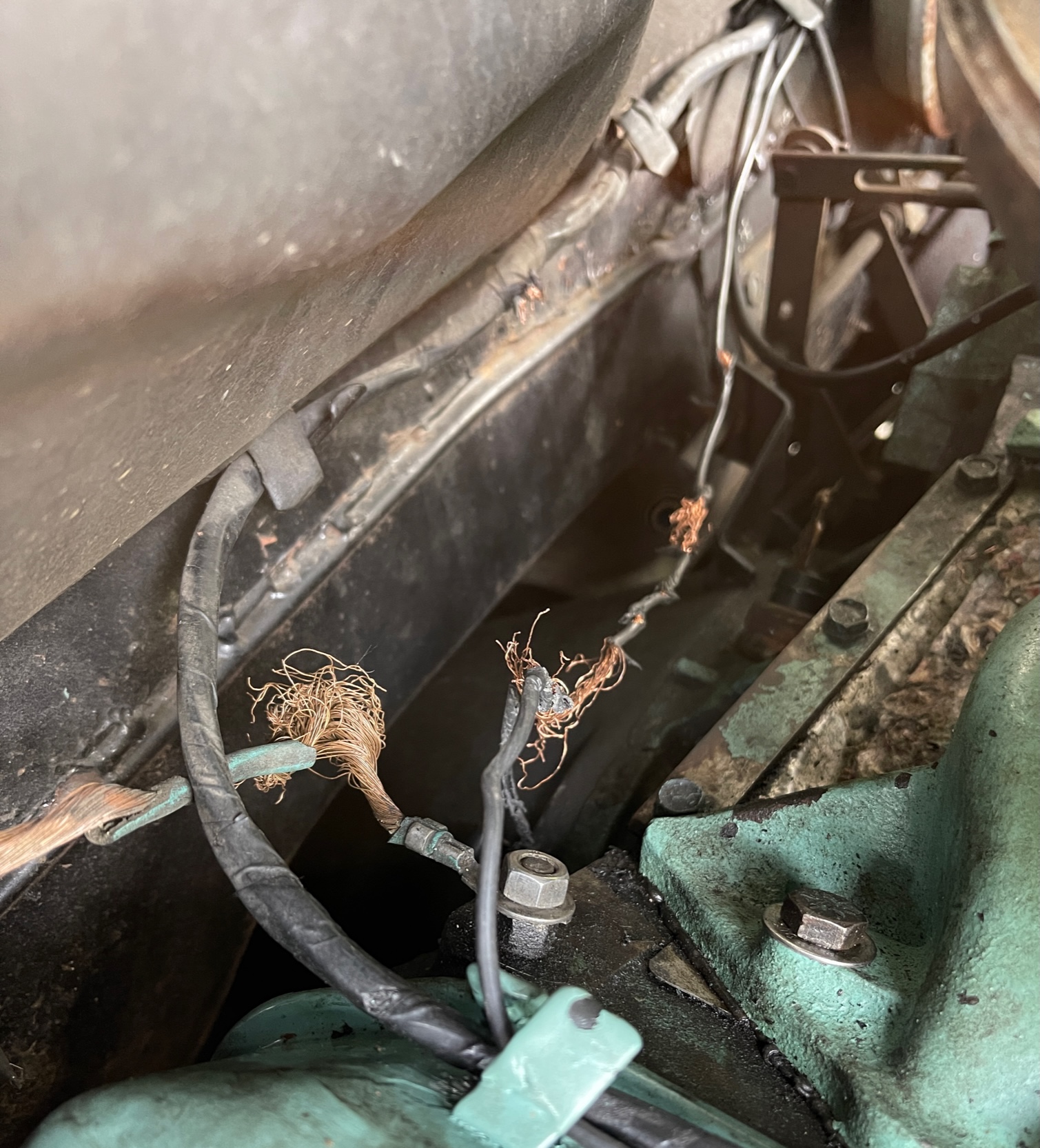

The evidence points to the groundhog.  I found some chewed wires and a bent transmission dipstick.  In fact on one car it also chewed some spark plug wires.

IMG_1622

These wires were not like this when I was originally troubleshooting, so this is an ongoing active crime scene.

IMG_1614

I know it sounds crazy but apparently groundhogs do this sometimes.  We haven’t had an issue with any other critters doing this before now.  We have some wires to replace… and a groundhog to get rid of... 😵‍💫

D&K

Sent from my iPhone

On Jul 18, 2023, at 5:57 AM, Anthony Cutrone <acgoldcoast@xxxxxxxxx> wrote:


Hi,
I recently had the same problem with my "F" and it was the neutral safety connection on the transmission.
Tony Cutrone

On Tue, Jul 18, 2023 at 12:57 AM Cox <scooter465@xxxxxxx> wrote:
As to why this happened to
All 3 not a clue.
I would suspect the neutral safety switch or circuit.
It provides a ground for starter when car is in
Park or neutral.

Bob Haag

> On Jul 18, 2023, at 12:34 AM, D.C. Mason <petergriffinforpresident@xxxxxxxxx> wrote:
>
> Hello Club,
>
> Not sure if anyone out there has had this happen but this is a first, and an odd one.
>
> We have three 64s- a K, a sport, and a “Newport 300”.   We had the K out on the Blue Ridge Parkway last month and have recently  driven the other two locally.   No problems.
>
> Then the other day I went to start one- nothing.  Meaning no sound, no click of the relay or solenoid, just nothing.   The next car- same thing.  And you betcha, the same thing on the next one.  All three cars would not turn over, not even a click, as if the battery was dead but they were all charged.
>
> In this case there is a temporary work-around:
> On the starter relay, there is a brown wire that I think is a ground or momentary ground when required.  As I was troubleshooting I found that if I ran a jumper wire (shown here in white) from the brown wire on the relay, to a decent ground, that restored normal starting.
>
> --
> For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
> ---
> You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
> To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
> To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/A5ED619C-4383-4524-85A1-1B876A404F28%40gmail.com.

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/BE2DEED3-B478-4F49-B5C8-FAA877756168%40cox.net.
>
>
> I don’t know the cause of this but at least this work around will overcome the issue in the case of these three cars.   It’s anyone’s guess as to why they would all three have the issue at the same time.   I have been driving 63/64s for 20 years and never seen this.  I did replace one of the relays (just for schnitts and schnizzles), and it didn’t change anything.
>
> Will report back if a cause is discovered.  In the meantime has anyone else had this happen with a 63/4?  Depending on the problem it may rear its head on other years too.   I have started carrying a jumper wire in the cars.
>
> D&K
>
>
>
> Sent from my iPhone
>
> --
> For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
> ---
> You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
> To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
> To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/A5ED619C-4383-4524-85A1-1B876A404F28%40gmail.com.

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/BE2DEED3-B478-4F49-B5C8-FAA877756168%40cox.net.

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/3F6720E2-8073-4F36-94CD-0A5990D17EEA%40gmail.com.
