Re: {Chrysler 300} Re: 1964 voltage limiter/ temperature gauge

["D.C. Mason" <petergriffinforpresident@xxxxxxxxx>]

Thanks Rich.  I should probably also add a couple tips for any younger members who may be pulling a 63/64 instrument cluster:

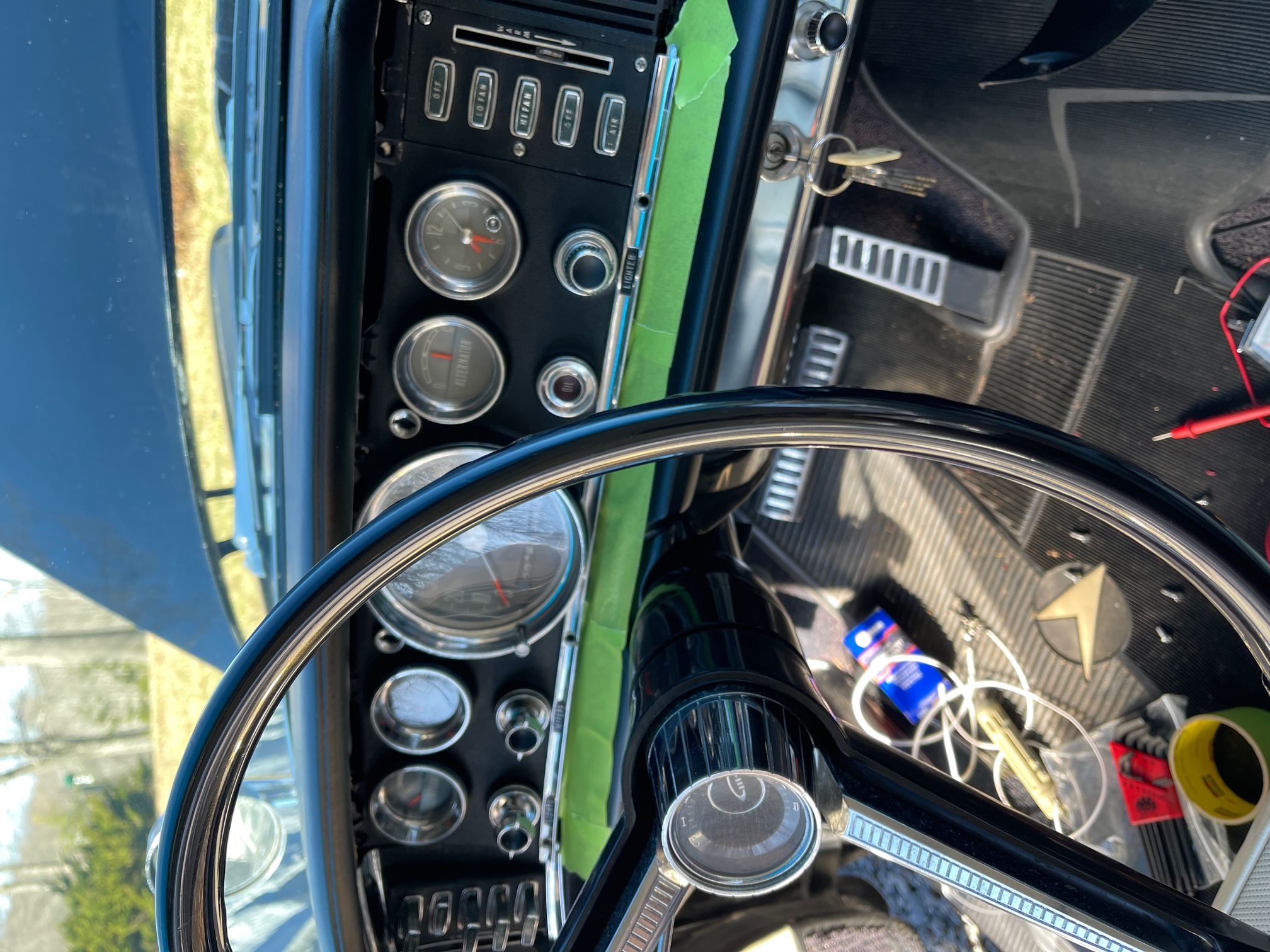

1) use some tape to protect the lower dash pad as pictured and
2) you can use a couple nails and a screwdriver to remove the bezels for the wiper switch and headlight switch as pictured.


--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/BA2A1ABD-298F-48AC-9BA8-C387452970A5%40gmail.com.

V/r

D&K

Sent from my iPhone

> On Jan 2, 2023, at 7:06 PM, Rich Barber <c300@xxxxxxx> wrote:
>
> Great shots.  Looks like mechanical damage, possibly after a previous repair job.
>
> I'd like to add my experience that includes board "failure" by one of the pins coming slightly loose from the board.  The pins are hollow brass with a shoulder that sits down on the copper plating of the board.  The hollow pin is held tightly to the copper top side by being flared on the bottom side.  After too many wiggles of the pin, the flaring loses its grip and allows the electrical connection to "fail"--often periodically at first.  Use a low-angle tapered punch/tool to tighten the flare by tapping it with the board properly supported and the pin supported carefully from vertical motion.  Good idea to do this to all the  pins when you have the instrument panel out.  Scotch-briting the pins  and other connection points on the cards before tightening would be prudent.
>
> Happy New Year and may all your connections be tight.
>
> Rich Barber in wet, warm CA.
>
> -----Original Message-----
> From: chrysler-300-club-international@xxxxxxxxxxxxxxxx <chrysler-300-club-international@xxxxxxxxxxxxxxxx> On Behalf Of D.C. Mason
> Sent: Monday, January 2, 2023 3:00 PM
> To: Bob Merritt <bob@xxxxxxxxxxxxx>
> Cc: John Grady <jkg@xxxxxxxxxxxxxxxxx>; chrysler 300 club <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
> Subject: {Chrysler 300} Re: 1964 voltage limiter/ temperature gauge
>
> John/Bob/all,
>
> The dead temperature gage in the 64 300 sport turned out to be a bad circuit card.
>
> I did pull the instrument cluster and replaced both the fuel and temp gauges, then reinstalled and still nothing.  Checked continuity along circuit card trace from 12V in and it was open/flaky.  Pulled card and took picture of damage.  Guess the trace burnt at some point in the past?
>
>
> --
