Re: {Chrysler 300} 300g transmission mount

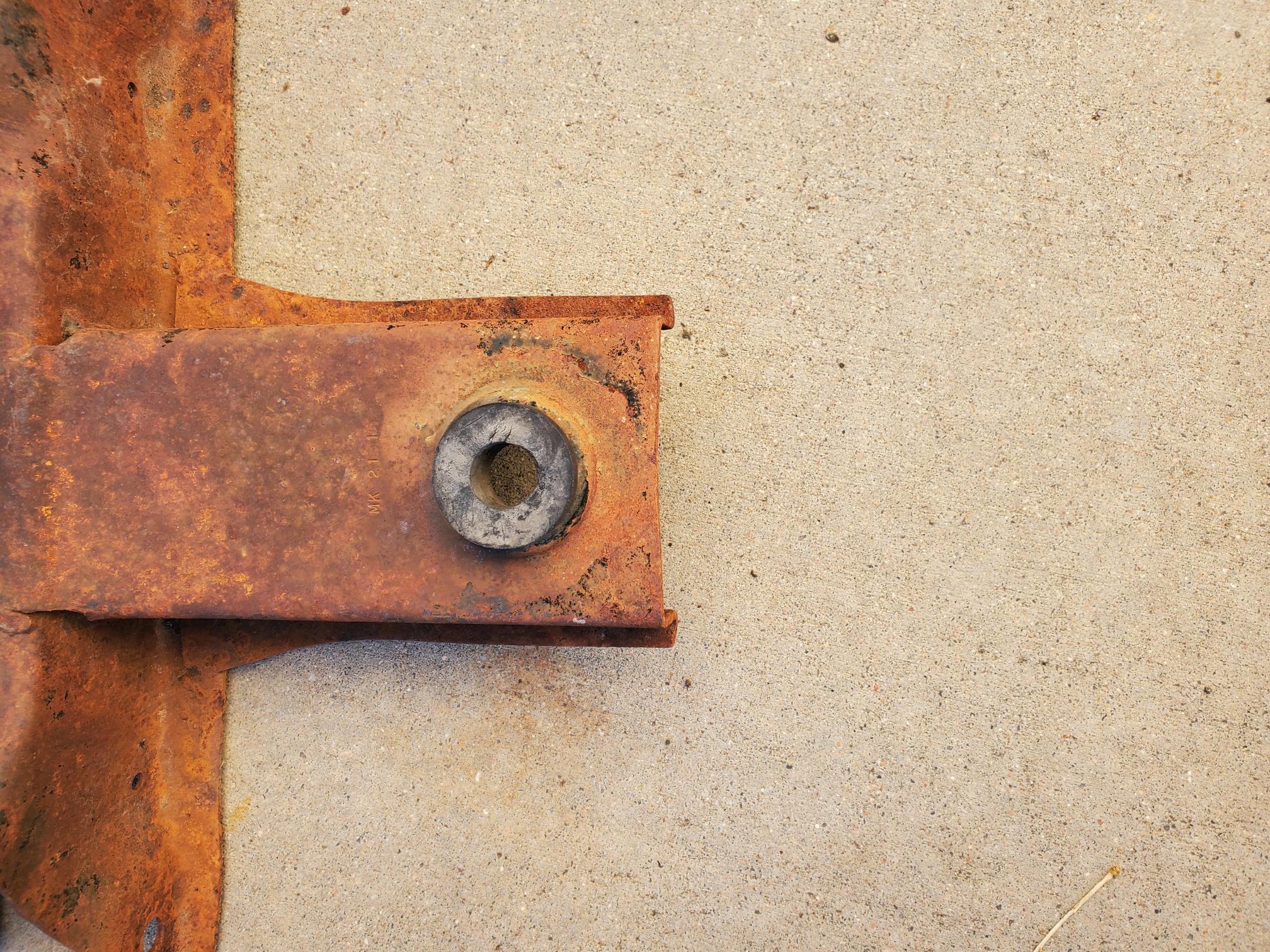

Are these pix any help? Could be duplicated in Delrin. Rick

Sent from my Verizon, Samsung Galaxy smartphone
Get Outlook for Android

From: chrysler-300-club-international@xxxxxxxxxxxxxxxx <chrysler-300-club-international@xxxxxxxxxxxxxxxx> on behalf of Rob E <try2keepitfun@xxxxxxxxx>
Sent: Monday, December 5, 2022 7:26:58 PM
To: Michael Marmorale <michael@xxxxxxxxxxxxx>
Cc: Donald Verity <chryslerdon@xxxxxxx>; chrysler-300-club-international@xxxxxxxxxxxxxxxx <chrysler-300-club-international@xxxxxxxxxxxxxxxx>; dplotkin <dplotkin@xxxxxxxxxxxxxxxxxxx>
Subject: Re: {Chrysler 300} 300g transmission mount

I had found some mounts on ebay a while back.

On Sun, Dec 4, 2022 at 10:38 AM Michael Marmorale <michael@xxxxxxxxxxxxx> wrote:
Thanks Don if you could send a pic of the bolt washer setup that would be great.

I got the motor in before it got too cold now have to put it all back together

Michael Marmorale

Sent from my iPhone
Please excuse errors.

On Dec 4, 2022, at 8:51 AM, Donald Verity <chryslerdon@xxxxxxx> wrote:


Dan and Mike,
The rubber bushing goes in the cross member, the spring sits directly on the cross member. There is a bolt with a washer that connects the cross member to the mount plate. It has a shoulder on it that allows some up and down travel. I may be able to take a picture if needed.

Don



There is a rubber bushing that goes inside that spring. Mine was destroyed I tried to find one ended up using a shock absorber bushing which worked fine.

Danny Plotkin



Sent from my Verizon, Samsung Galaxy smartphone


-------- Original message --------
From: Michael Marmorale <michael@xxxxxxxxxxxxx>
Date: 12/3/22 10:23 PM (GMT-05:00)
Subject: {Chrysler 300} 300g transmission mount

Hi all.  I put the engine and transmission in the 300g yesterday.



Had a question about the transmission mount.  Does the transmission bolt to anything?  I have the rear mount of the transmission resting on the spring and the spring is on the spring perch on the crossmember.  Does the spring rest on the crossmember directly or is there a rubber bushing it rests on?



Not sure if I’m missing something here.  Having a hard time finding pics of how it should fit.  Any pointers from anyone?



Thanks Mike

--
